Digital måletaster P12D 0–12,7 mm × 0,01 µm med M8-tilslutning (høj opløsning, 801.1212)
Varenr. SYL8011212 EAN 7640125715552
12.052,50 kr9.642,00 kr
Leveres på 2–3 hverdage ·
- Måleområde
- 0–12,7 mm
- Opløsning
- 0 mm
- Nøjagtighed
- 0,6 µm
- Dataudgang
- M8
Om produktet
- High-precision measuring probes with patented measuring system combining inductive and capacitive technologies
- Absolute system with integrated electronic error correction (no more pairing with the unit or computer) guaranteeing high accuracy over the entire measuring range
- Extremely robust ball bearing guide guarantees a minimum of 100 million cycles (30 millions with radial load)

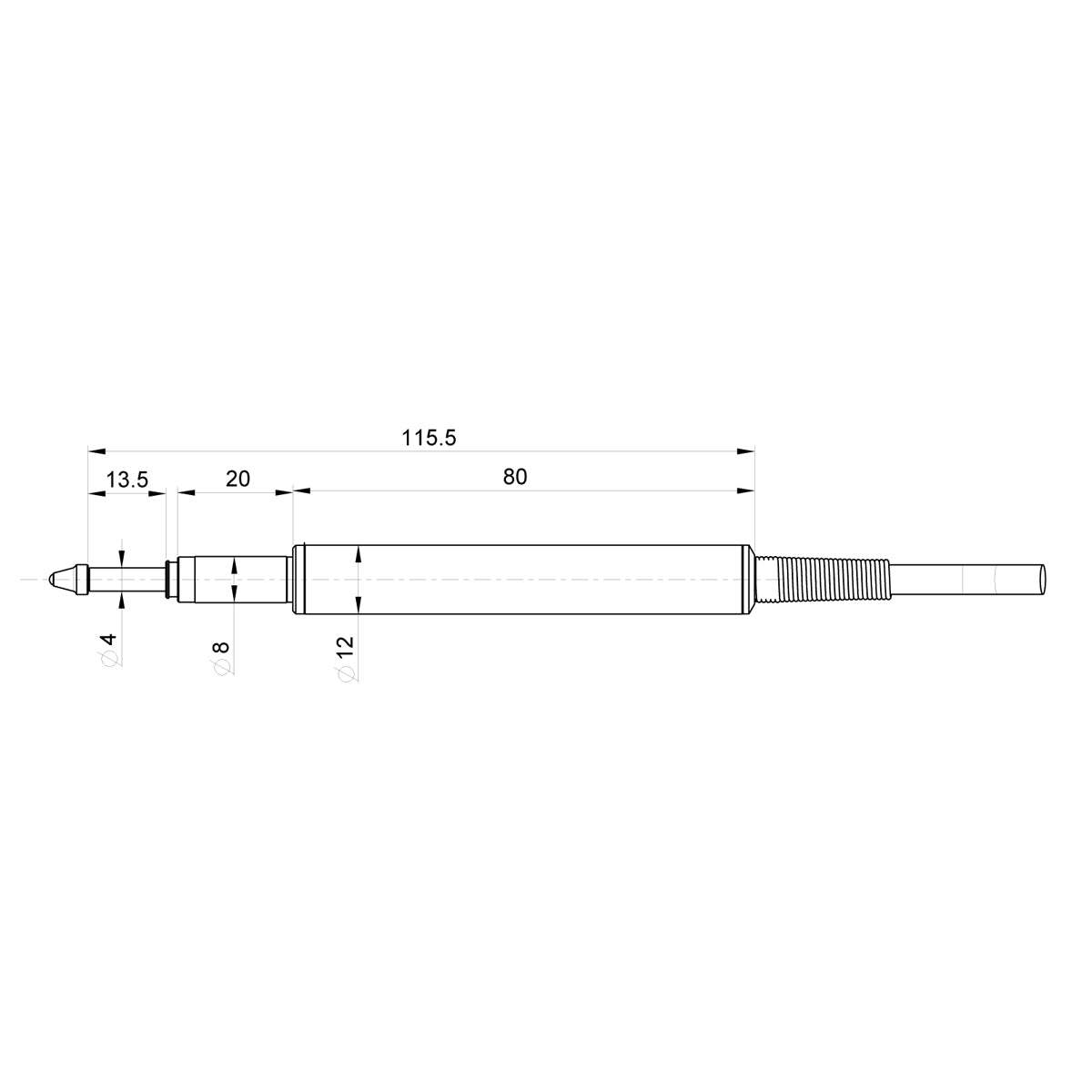

- Stainless steel body Ø 12 mm, fixing diameter 8 h6
- Measuring range 12,7 mm

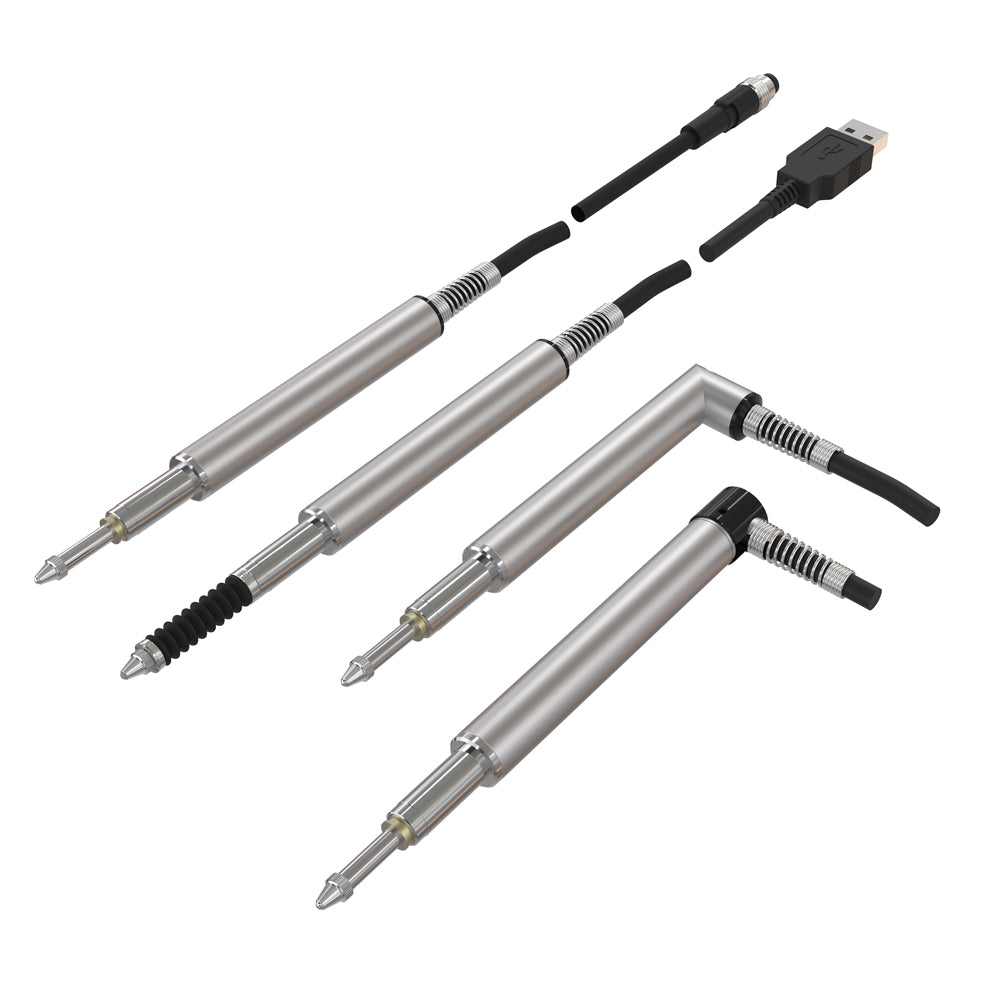

- Available in 3 versions: Standard, Work and Pro
- Measuring force selectable: low or very low for vertical use only
- Output signal in direct digital format without the need for a converter
- Reading speed up to 100 values per second depending on configuration

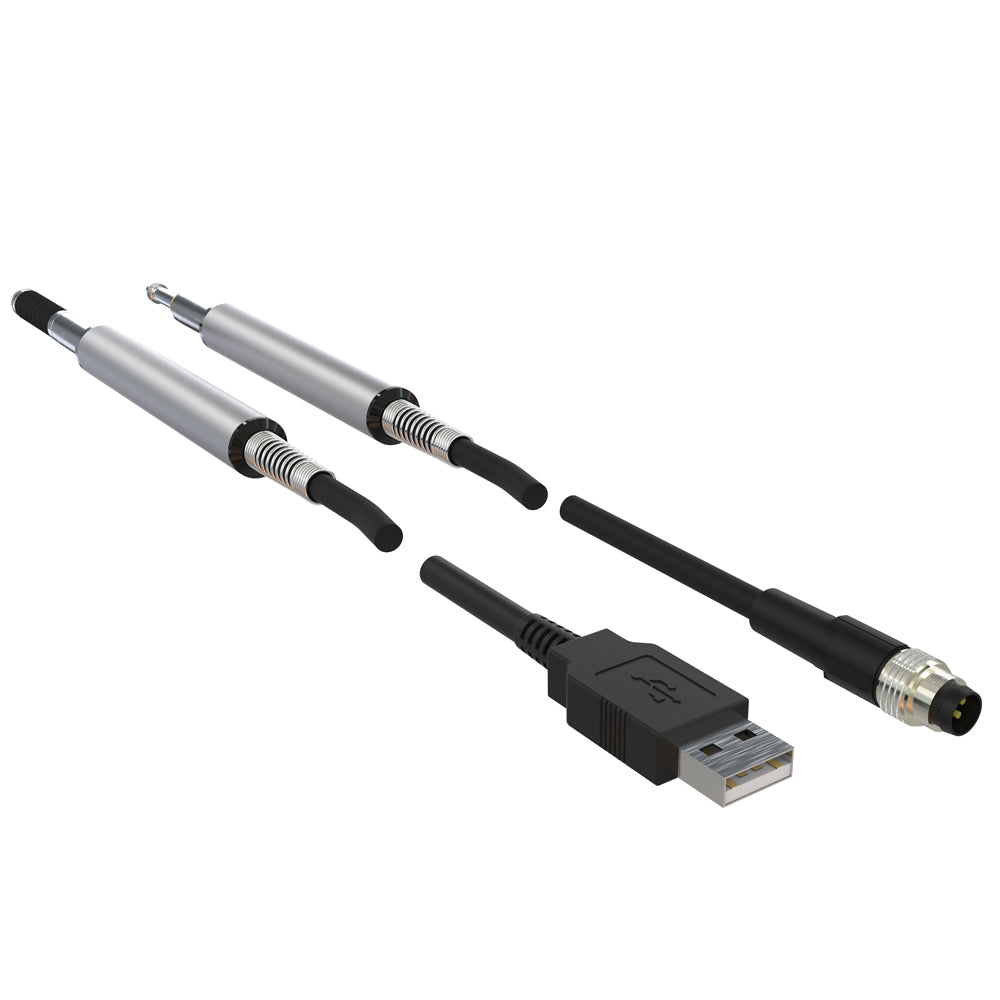

- Straight cable length 2m with either USB or M8 connector
- Cable outlet protected by a spring which can be tilted by 90° with the optional accessory 801-5101
- Protection class IP54
Specifikationer
| Måleområde | 0–12,7 mm |
|---|---|
| Opløsning | 0 mm |
| Nøjagtighed | 0,6 µm |
| Gentagelsesnøjagtighed | 0,08 µm |
| Vægt | 0,2 kg |
| IP-klasse | IP54 |
| Dataudgang | M8 |
| Model | P12D HR M8 |
