4.502,50 kr3.602,00 kr
Leveres på 2–3 hverdage ·
- Måleområde
- ±5 mm
- Opløsning
- 0 mm
- Nøjagtighed
- 0,5%
Om produktet

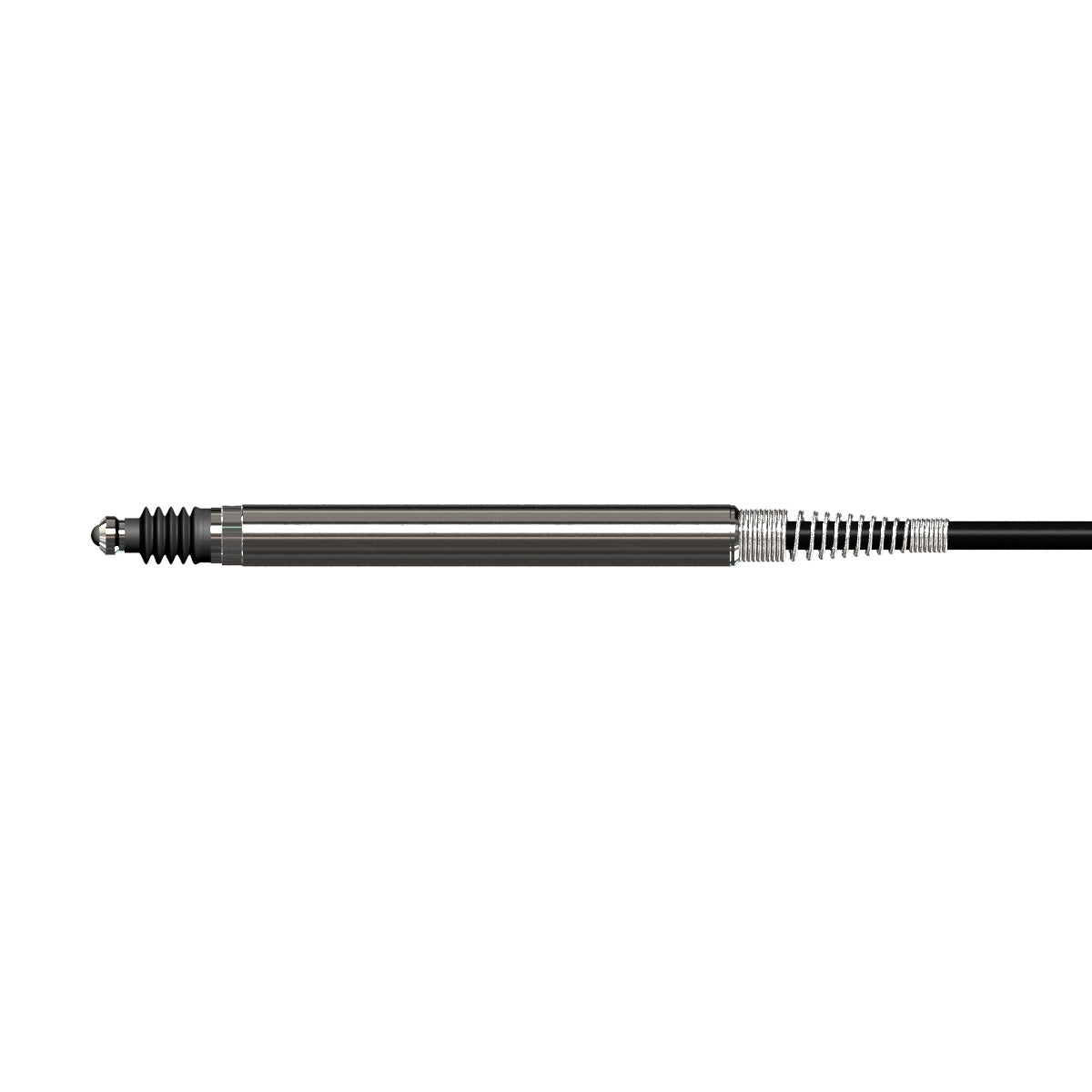

- Inductive pencil-type measuring probes with stainless steel body Ø 8 h6 over the entire length
- Particularly suitable for comparison measurements due to their excellent repeatability (0,15 µm)
- Half-Bridge Output Type
- Reading speed up to 3900 values per second, depending on configuration
- Extremely robust ball bearing guide guarantees a minimum of 10 million cycles when the probe is not subjected to a lateral force

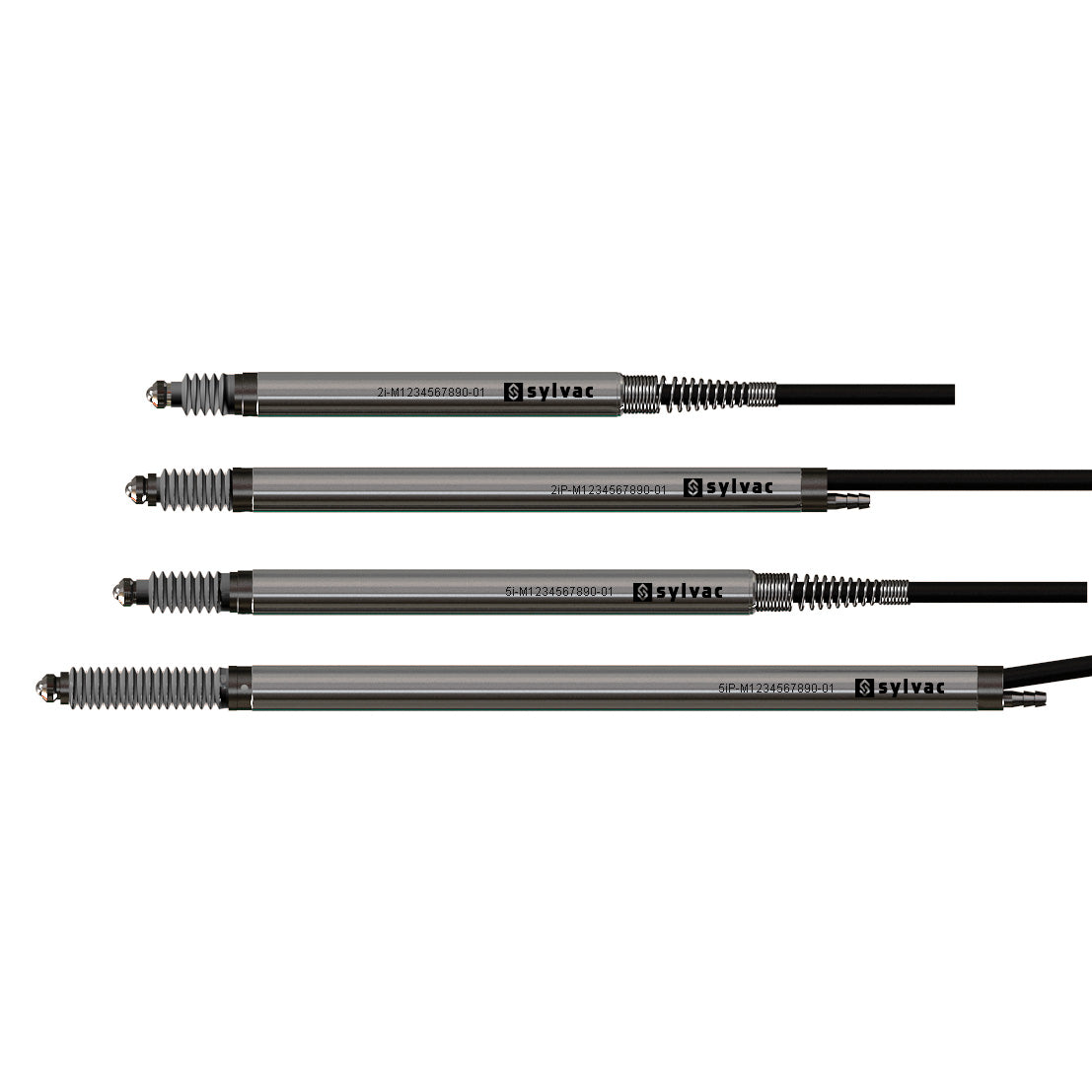

- Available in 2 versions :
- Spring pressure, measuring force 0,7 N
- Pneumatic thrust, the probe is retracted when it is not supplied with air (1 to 3 bar), pressure influencing the measuring force (0.4-0,7 N)
- Measuring range +/- 2 mm and +/- 5 mm
- Resolution up to 0,0001 mm (0,1 µm)
- Cable outlet protected by a spring which can be tilted by 90° with the optional accessory 901-5110
- PUR cable length 2 m.
- IP65 protection with Viton® bellows
Specifikationer
| Måleområde | ±5 mm |
|---|---|
| Opløsning | 0 mm |
| Nøjagtighed | 0,5% |
| Gentagelsesnøjagtighed | 0,15 µm |
| Vægt | 0,13 kg |
| IP-klasse | IP65 |
| Model | P5iP |
| Kontaktflade | Ø3 mm |
